3/4" Forged Top Square U-Bolt Kit - 4" Inside Diameter - 7" Length

Square forged top 3/4 inch U-bolt kit, made with precision and durability. These square forged top U-bolts are 7 inches in length, have a 4 inch inside diameter, feature a fine thread, are non-coated and are made of grade 8 steel. Specifically designed for secure fastening in heavy duty applications. Trust your project's performance with the reliability of our stout U-bolt rods.

U-Bolt Details:

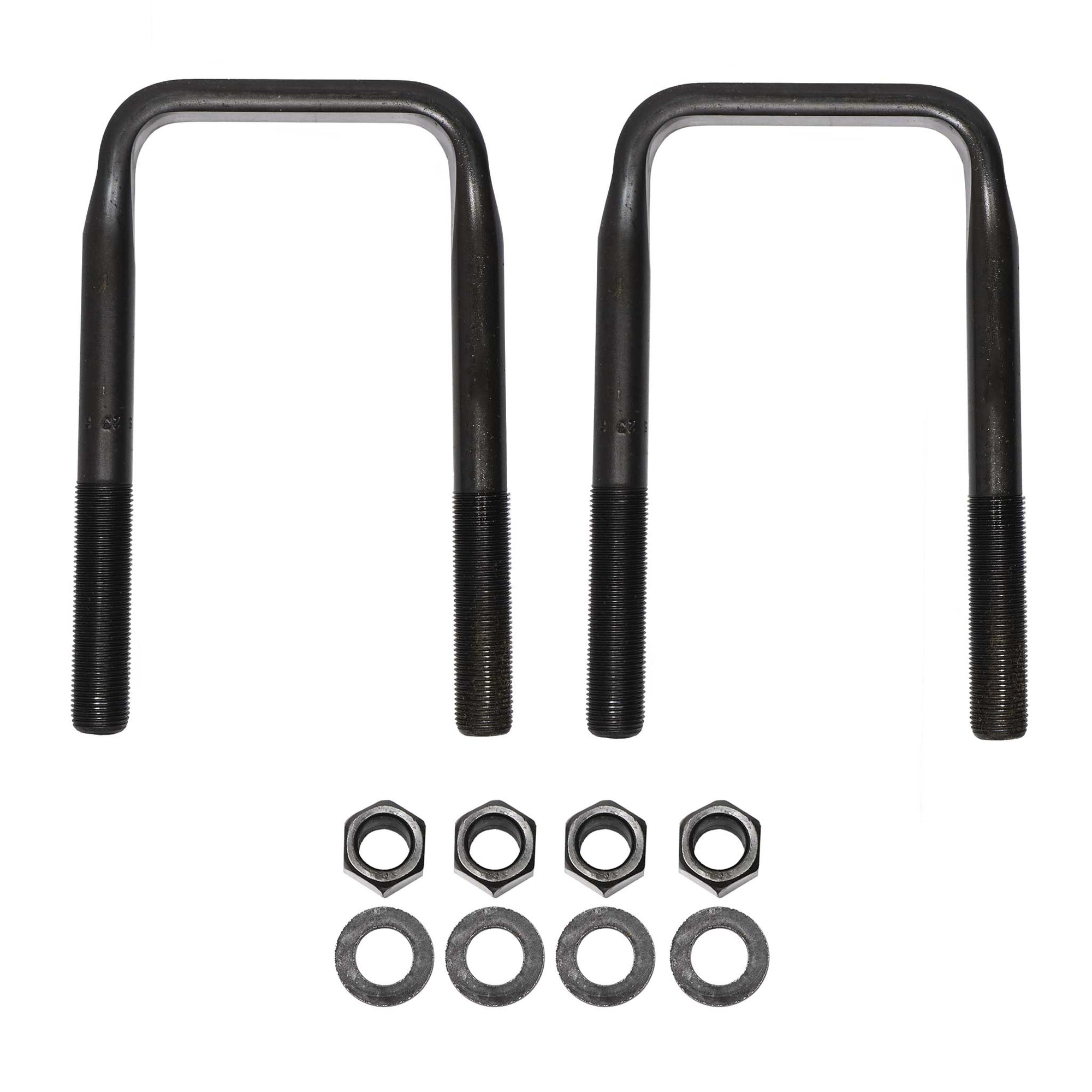

- Includes 2 U-bolts, 4 nuts and 4 washers.

- Application: Kenworth

- Torque Specification: 315 FT LBS.

- U-Bolt Material: Raw Steel (Non-Coated)

- Thread Direction: Right-hand Thread

- Thread Type: Standard NF Fine Thread

- Grade: SAE Grade 8

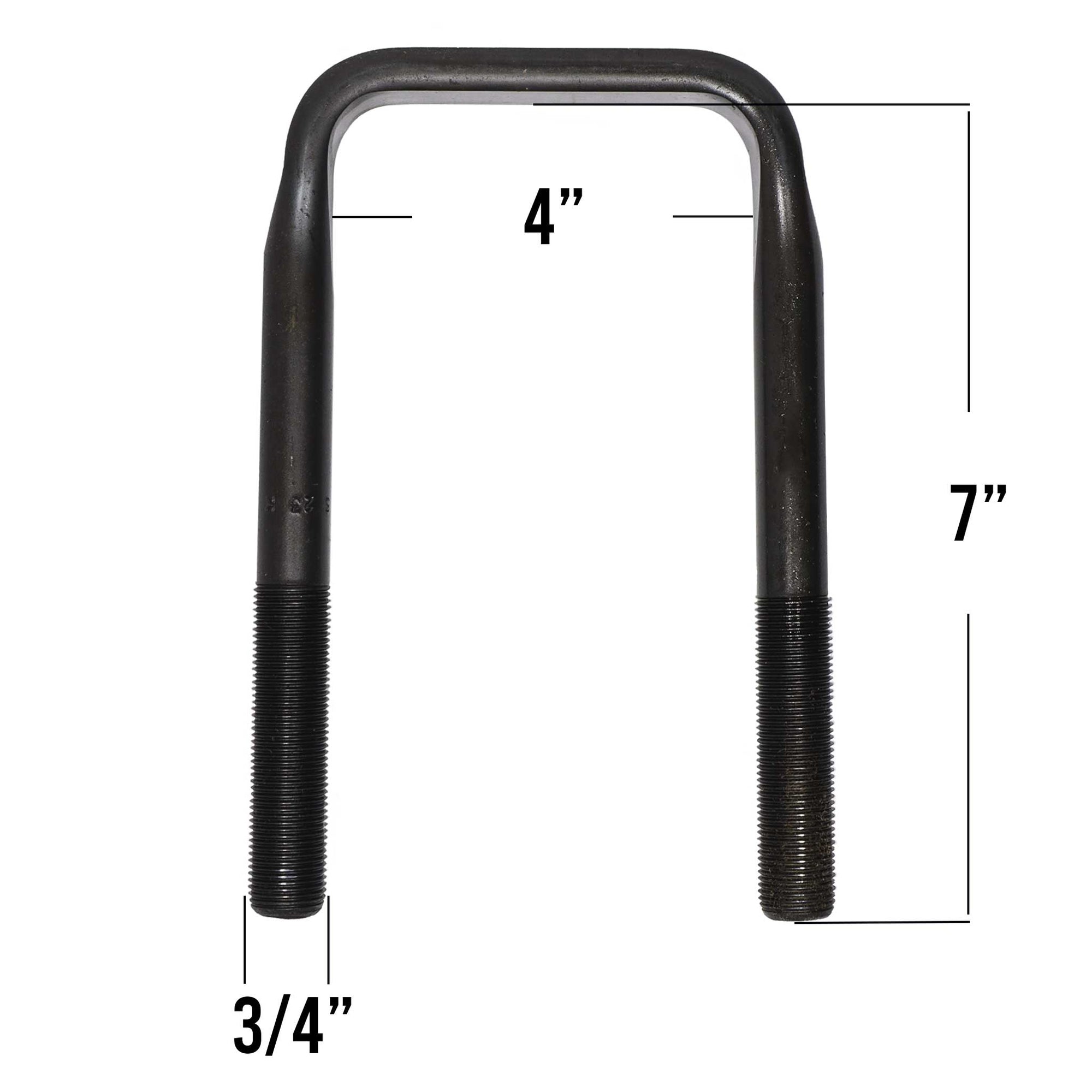

- U-Bolt Diameter: 3/4"

- Inside Diameter: 4"

- Thread length: 3"

- Leg Length: 7"

- Size And Threads Per Inch: 3/4-16

- Cross Reference Part Numbers: Automann - AUBK8554-070
